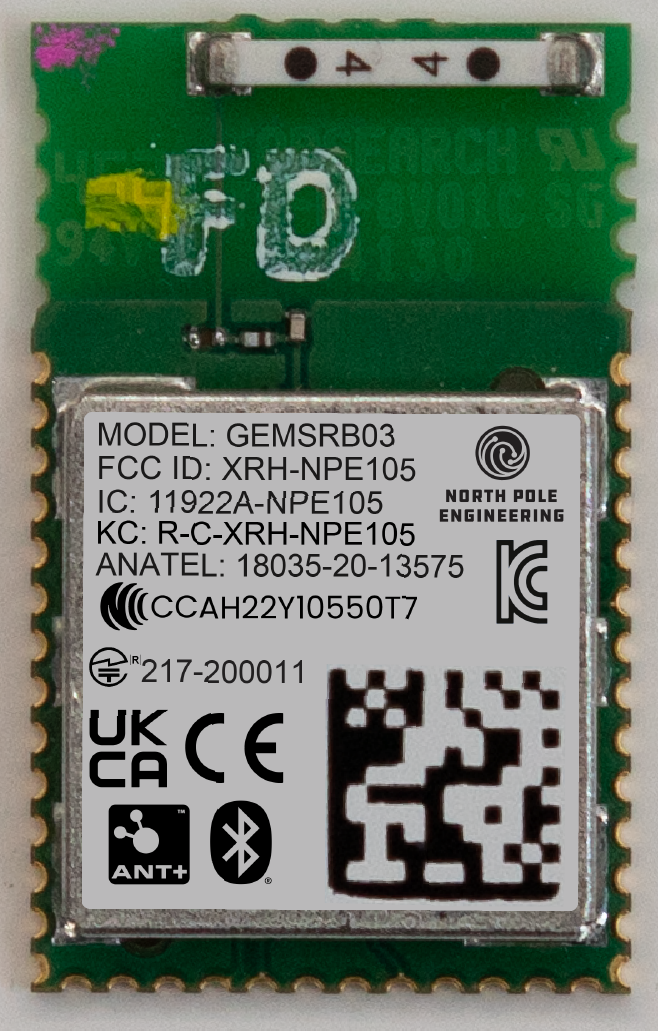

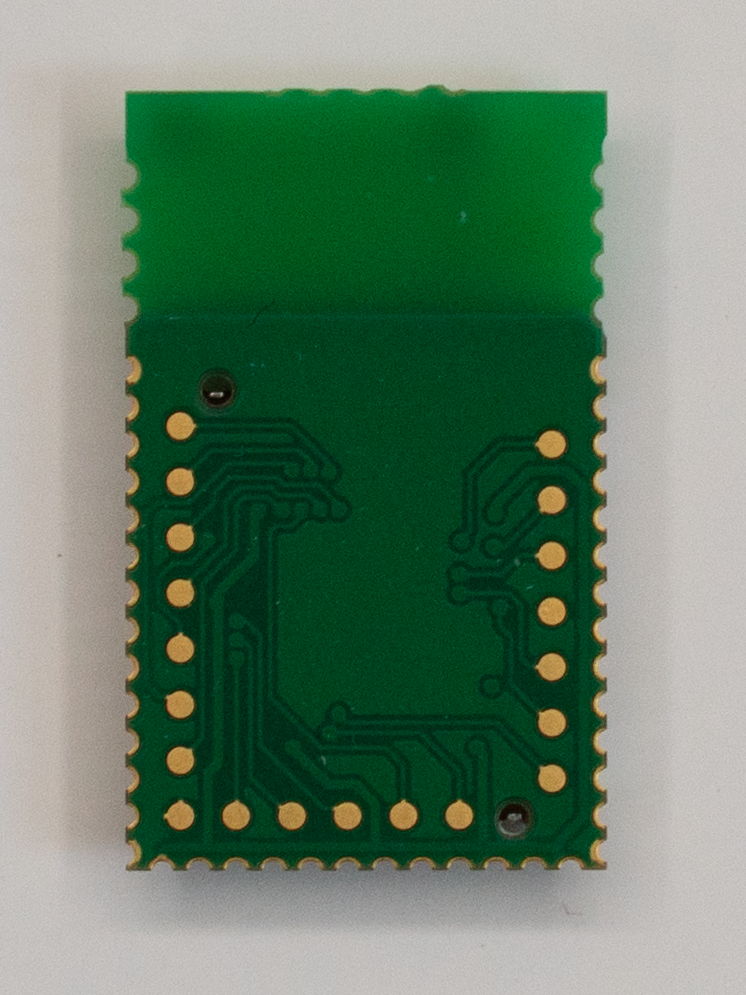

GEM3 Module

Part Number: GEMSRB0301-A-25-AA

The North Pole Engineering GEM3 Module is a fully integrated Bluetooth and ANT+ wireless module solution designed for easy integration into fitness equipment and other sports or fitness applications.

$21.15
Not in the United States? Your shipping costs may be significantly higher. Click here to find a dealer near you.

Apple Watch as a Heart Rate Monitor

Baked into every NPE Home Fitness product, heartbeatz technology lets you connect the heart rate monitor in your Apple Watch as if it were a standard ANT+ or Bluetooth heart rate monitor.

Which module is right for my equipment?

Our product feature matrix takes the mystery out of our lineup. Get the right module for your situation, the first time.

1 Year
Warranty

Bluetooth and
ANT+ Connectivity

Powered by
heartbeatz

Description

The North Pole Engineering GEM3 Module is a fully integrated Bluetooth and ANT+ wireless module solution designed for easy integration into fitness equipment and other sports or fitness applications. It supports all BLE and ANT+ services and profiles to seamlessly interact with leaderboards, phone apps and wearables. The GEM3 carries module certifications in all major markets and is Bluetooth and ANT+ qualified. Utilizing standard specifications, it allows developers to easily integrate fitness equipment workout data into applications whether they be for iOS, Android, or Windows.

  • Concurrent ANT+ and BLE
  • Bluetooth Services: FTMS, CPS, CSCS, GymConnect, Generic Serial
  • Bluetooth Clients: HRS
  • ANT+ Profiles (TX): FEC, SDM, PWR, BCS
  • ANT+ Profiles (RX): HRM, PWR, SAC, CAD, SPD
  • ANT+ Frequency Diversity (Asynchronous and Synchronous for transmitter and receiver profile)
  • ANT Broadcast Mesh for controlling state from one piece of fitness equipment to many
  • GemOS Compatible allowing customer application on module
  • Secure firmware updates over serial or over-the-air using BLE.
  • ConfigurEZ app for DFU
  • Reference Designs for ‘C’ and Android host platforms.
  • Host Protocol: GEMHCI
  • USB or UART Host interface for flexible host MCU connections
  • RF CERTIFICATIONS allows for broad use across most geographies
Specifications
Chip nRF52840
Castellated Pads 40
Antenna On-board chip
Bluetooth Specification 5.3
Host Interface Uart or USB
Flash 1MB
RAM 256KB
Transmit Power Level -20 to +8dBm
Temperature Range -40° to +85°
Receive sensitivity in ANT mode -90dBm
Receive sensitivity in Bluetooth LE mode -103dBm
